XHV

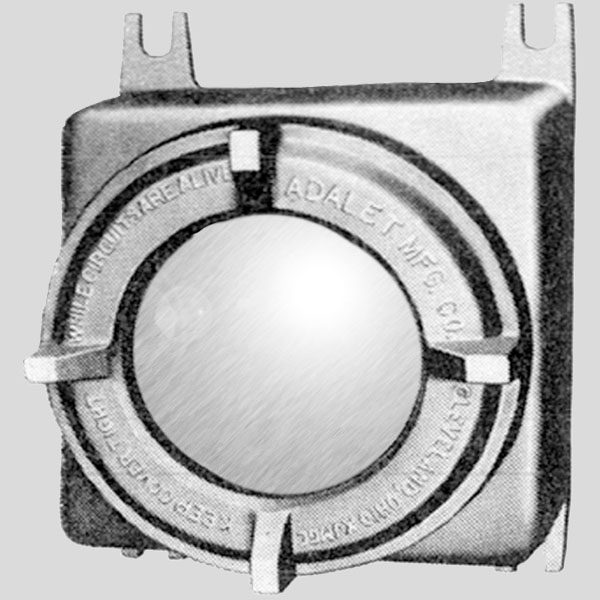

Explosion Proof Housing for Viewing Displays in Hazardous Areas

Application

The housing is made from cast aluminum and sealed to meet NEMA 7 and 4 specifications. This is accomplished by neoprene gaskets retained in machined grooves in the covers and buttons. The front button actuators have the same easy-to-use keypad layout that has become the trademark of the KEP “trol” and “SUPERtrol” series. 6 blind threaded holes are provided for mounting with 2 each 1/2″ NPT openings for wiring.

Features

  • Available for 1/8 DIN and DIN 144 x 72 mm Cases
  • Meets NEMA 7 & 4 Specs.
  • For use in Class 1, Division 1, Groups B, C & D
  • For use in Class 2 & 3, Division 1, Groups E, F & G
  • UL, cUL Approved
  • Magnetic Reset Switch Available
